| Truncated Icosahedron (internally supported) | |
 ' | |
| Type | Reinforcement structure |
| Rods | 210+150 ×
|
| Spheres | 80 ×
|
| Author | Amafirlian 18:07, 25 August 2007 (UTC) |
This support structure is amazingly close (TODO: how close). It consists of five intersecting tetrahedra, connected to the spheres in the truncated icosahedron with valency 6 (there are twenty of them). The length of the tetrahedral edges is 5 rods.
The edges of the tetrahedra should be 143.8035 mm, and they are 146.84 mm actually. That is 2.11% too long, but the excess is easily absorbed by the hexagons.
Building Instructions[]
- Similar to the Rhombic Triacontahedron Near Miss.
- Keep panels in the pentagons and discard them when the internal support is complete.
Different Views[]

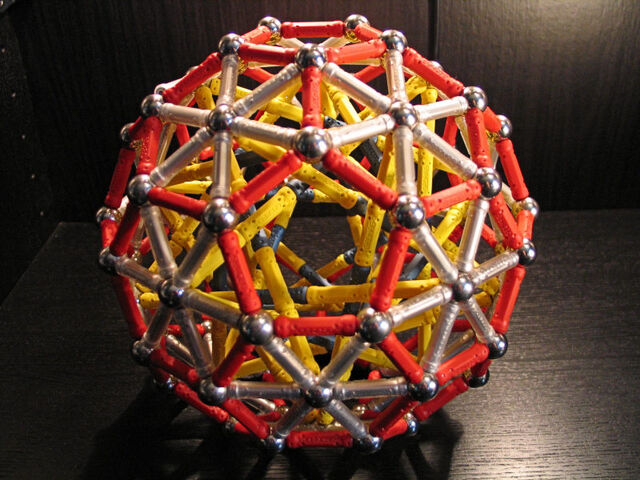

View on one of the pentagons
View on one of the spheres with valency 6
View on one of the pentagons, single colour for the supporting tetrahedra
View on one of the spheres with valency 6, single colour for the supporting tetrahedra
