To make a sphere is easy (any of the truncated icosahedra will do), but how to make a torus?

Decapod Construction Element Edit

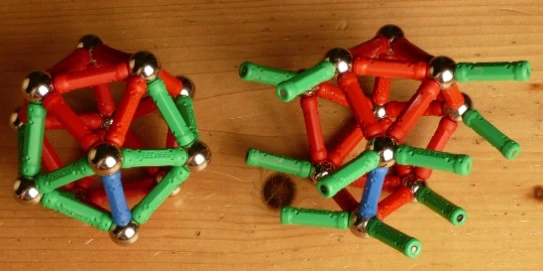

I used a small icosahedron as starting point, and bent it open at two pentagons having a common edge. This gives what we can call a decapod, with 10 legs in green, and let us call the common edge its nose (indicated in blue). These are the building blocks to build tori. The part counts are thus easy: for each decapod in the design, use 30 rods and 20-2=18 balls.

Decapod



3m-fold Torus

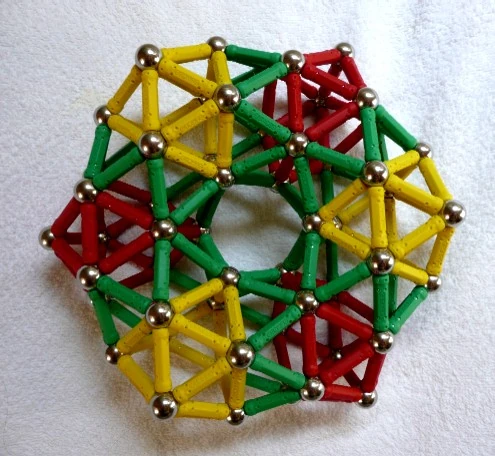

Torus6
'
TypePolyhedron:Torus
Rods 180 × Geomag rod icon
Spheres 108 × Geomag ball icon
Author Leo Dorst 06:58, 24 May 2008 (UTC)


Medium Torus with 3m-fold Symmetry Edit

My first attempt was to connect these decapods alternatingly, having the noses slightly up, then slightly down. This leads to exact closure with 6 decapods, and gives a basically hexagonal torus.

In the defining picture, the bodies of the decapods are red and yellow, and all the legs connecting the neighbors are green. Most balls have valence 6 ('flattish'), but on the outer rim there are 12 valence-5 balls ('curved'), and on the inner rim there are 12 valence-7 balls ('saddle-like').

These tori can be connected as regular hexagons, making a whole network possible. The principle is demonstrated well enough by connecting two or three, see pictures below.

The hexagonal nature of these kinds of tori is displayed more clearly by adding extra segments, as in the final picture.



5m-fold Torus

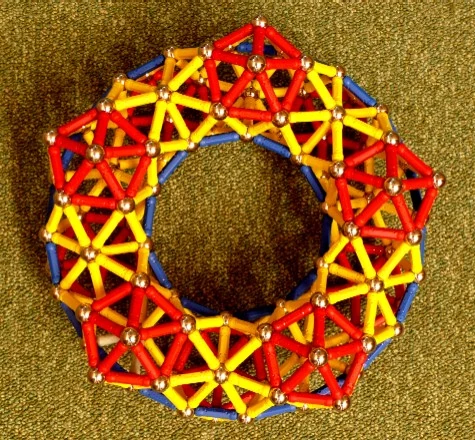

TenTorus
'
TypePolyhedron:Torus
Rods 300 × Geomag rod icon
Spheres 180 × Geomag ball icon
Author Leo Dorst 06:58, 24 May 2008 (UTC)


A Bigger Torus with 5m-fold Symmetry Edit

But if you connect the decapods alternatingly relative to a circular reference line, you get a torus consisting of 10 decapods, with a 10-gon internal ring, and a 20-gon outer ring. In the pictures, the inner and outer ring are denoted in blue. (Be warned: the coloring now does not correspond to the decapods, I did not have enough reds...)

However, these rings are not planar, as you may see from the Side View.


Small Torus

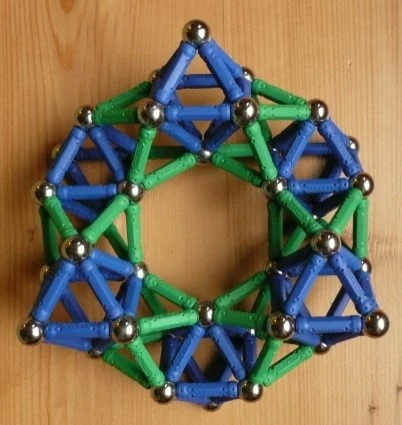

Tiny torus a
'
TypePolyhedron:Torus
Rods 108 × Geomag rod icon
Spheres 36 × Geomag ball icon
Author Leo Dorst 05:59, 6 September 2008 (UTC)


A Small Torus Edit

When working on the Diamond, I found a smaller torus. It is perhaps a bit too small, the inner tube is not more than one triangle wide, but these tori can be attached in 4 directions (which is how they are the building blocks of diamonds).

The construction is simple: start with 6 octahedra, and connect them using zigzags. The building blocks again are not in a plane, but have 3m symmetry.

It appears possible to chop off the tops of the octahedra and still get a mathematically rigid torus.


Squared Torus

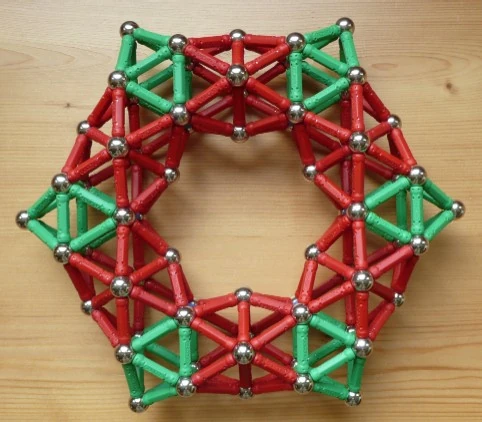

Square torus a
'
TypePolyhedron:Torus
Rods 198 × Geomag rod icon
Spheres 66 × Geomag ball icon
Author --Leo Dorst 19:26, 20 September 2008 (UTC)


A Squared Torus Edit

After seeing those tori with pentagonal and triangular cross sections, is there one with a square cross section?

There is, and Peter Jepsen had found it already. In this case, the 'pods' are octahedrons, but with one of their vertices split, and the connections are double zigzags. Because of that, all the corners lie in a plane, and there is a true six-fold symmetry. An alternative way of viewing this is a hexagonal (green) prism split by (red) extensions.

The structure appears to remain stable when the protruding pyramids are removed from the octahedral nodes, making it more toroidal looking.


Tiny Torus

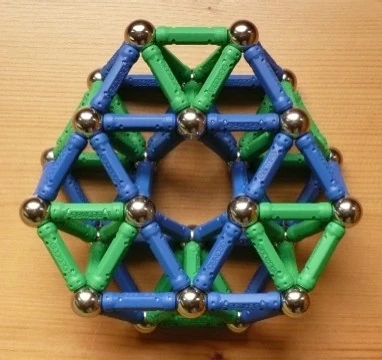

Teensy torus a
'
TypePolyhedron:Torus
Rods 72 × Geomag rod icon
Spheres 24 × Geomag ball icon
Author ----Leo Dorst 19:26, 21 September 2008 (UTC)


A Tiny Torus Edit

Is this still a torus? It has tetrahedra as its nodes, connected in zigzag fashion forming octahedra. The cross section is triangular. The faces arrange in flat patterns, which is rather inelegant.

--Leo Dorst 21:16, 23 May 2008 (UTC)
